强化学习复习（四）

基于pytorch实现的强化学习网络
- 这个的PPO写的似乎有问题
强化学习网络集合
集合 2
PPO
PPO是基于Actor-Critic的算法

import argparse
import pickle
from collections import namedtuple

import matplotlib.pyplot as plt

import gym
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.distributions import Normal
from torch.utils.data.sampler import BatchSampler, SubsetRandomSampler

parser = argparse.ArgumentParser(description='Solve the Pendulum-v0 with PPO')
parser.add_argument(
    '--gamma', type=float, default=0.9, metavar='G', help='discount factor (default: 0.9)')
parser.add_argument('--seed', type=int, default=0, metavar='N', help='random seed (default: 0)')
parser.add_argument('--render', action='store_true', help='render the environment')
parser.add_argument(
    '--log-interval',
    type=int,
    default=10,
    metavar='N',
    help='interval between training status logs (default: 10)')
args = parser.parse_args()

torch.manual_seed(args.seed)

TrainingRecord = namedtuple('TrainingRecord', ['ep', 'reward'])
Transition = namedtuple('Transition', ['s', 'a', 'a_log_p', 'r', 's_'])


class ActorNet(nn.Module):

    def __init__(self):
        super(ActorNet, self).__init__()
        self.fc = nn.Linear(3, 100)
        self.mu_head = nn.Linear(100, 1)
        self.sigma_head = nn.Linear(100, 1)

    def forward(self, x):
        x = F.relu(self.fc(x))
        mu = 2.0 * F.tanh(self.mu_head(x))
        sigma = F.softplus(self.sigma_head(x))
        return (mu, sigma)


class CriticNet(nn.Module):

    def __init__(self):
        super(CriticNet, self).__init__()
        self.fc = nn.Linear(3, 100)
        self.v_head = nn.Linear(100, 1)

    def forward(self, x):
        x = F.relu(self.fc(x))
        state_value = self.v_head(x)
        return state_value


class Agent():

    clip_param = 0.2
    max_grad_norm = 0.5
    ppo_epoch = 10
    buffer_capacity, batch_size = 1000, 32

    def __init__(self):
        self.training_step = 0
        self.anet = ActorNet().float()
        self.cnet = CriticNet().float()
        self.buffer = []
        self.counter = 0

        self.optimizer_a = optim.Adam(self.anet.parameters(), lr=1e-4)
        self.optimizer_c = optim.Adam(self.cnet.parameters(), lr=3e-4)

    def select_action(self, state):
        state = torch.from_numpy(state).float().unsqueeze(0)
        with torch.no_grad():
            (mu, sigma) = self.anet(state)
        dist = Normal(mu, sigma)
        action = dist.sample()
        action_log_prob = dist.log_prob(action)
        action = action.clamp(-2.0, 2.0)
        return action.item(), action_log_prob.item()

    def get_value(self, state):

        state = torch.from_numpy(state).float().unsqueeze(0)
        with torch.no_grad():
            state_value = self.cnet(state)
        return state_value.item()

    def save_param(self):
        torch.save(self.anet.state_dict(), 'param/ppo_anet_params.pkl')
        torch.save(self.cnet.state_dict(), 'param/ppo_cnet_params.pkl')

    def store(self, transition):
        self.buffer.append(transition)
        self.counter += 1
        return self.counter % self.buffer_capacity == 0

    def update(self):
        self.training_step += 1

        s = torch.tensor([t.s for t in self.buffer], dtype=torch.float)
        a = torch.tensor([t.a for t in self.buffer], dtype=torch.float).view(-1, 1)
        r = torch.tensor([t.r for t in self.buffer], dtype=torch.float).view(-1, 1)
        s_ = torch.tensor([t.s_ for t in self.buffer], dtype=torch.float)

        old_action_log_probs = torch.tensor(
            [t.a_log_p for t in self.buffer], dtype=torch.float).view(-1, 1)

        r = (r - r.mean()) / (r.std() + 1e-5)
        with torch.no_grad():
            target_v = r + args.gamma * self.cnet(s_)

        adv = (target_v - self.cnet(s)).detach()

        for _ in range(self.ppo_epoch):
            for index in BatchSampler(
                    SubsetRandomSampler(range(self.buffer_capacity)), self.batch_size, False):

                (mu, sigma) = self.anet(s[index])
                dist = Normal(mu, sigma)
                action_log_probs = dist.log_prob(a[index])
                ratio = torch.exp(action_log_probs - old_action_log_probs[index])

                surr1 = ratio * adv[index]
                surr2 = torch.clamp(ratio, 1.0 - self.clip_param,
                                    1.0 + self.clip_param) * adv[index]
                action_loss = -torch.min(surr1, surr2).mean()

                self.optimizer_a.zero_grad()
                action_loss.backward()
                nn.utils.clip_grad_norm_(self.anet.parameters(), self.max_grad_norm)
                self.optimizer_a.step()

                value_loss = F.smooth_l1_loss(self.cnet(s[index]), target_v[index])
                self.optimizer_c.zero_grad()
                value_loss.backward()
                nn.utils.clip_grad_norm_(self.cnet.parameters(), self.max_grad_norm)
                self.optimizer_c.step()

        del self.buffer[:]


def main():
    env = gym.make('Pendulum-v0')
    env.seed(args.seed)

    agent = Agent()

    training_records = []
    running_reward = -1000
    state = env.reset()
    for i_ep in range(1000):
        score = 0
        state = env.reset()

        for t in range(200):
            action, action_log_prob = agent.select_action(state)
            state_, reward, done, _ = env.step([action])
            if args.render:
                env.render()
            if agent.store(Transition(state, action, action_log_prob, (reward + 8) / 8, state_)):
                agent.update()
            score += reward
            state = state_

        running_reward = running_reward * 0.9 + score * 0.1
        training_records.append(TrainingRecord(i_ep, running_reward))

        if i_ep % args.log_interval == 0:
            print('Ep {}\tMoving average score: {:.2f}\t'.format(i_ep, running_reward))
        if running_reward > -200:
            print("Solved! Moving average score is now {}!".format(running_reward))
            env.close()
            agent.save_param()
            with open('log/ppo_training_records.pkl', 'wb') as f:
                pickle.dump(training_records, f)
            break

    plt.plot([r.ep for r in training_records], [r.reward for r in training_records])
    plt.title('PPO')
    plt.xlabel('Episode')
    plt.ylabel('Moving averaged episode reward')
    plt.savefig("img/ppo.png")
    plt.show()


if __name__ == '__main__':
    main()

产生动作的方式与一般的PG类似，就是使用PG输出一个μ和σ然后使用正态分布，然后进行采样输出真正的动作

网络更新
reward归一化，将reward-平均数/标准差
计算target价值，使用当前回合的reward+系数×Critic对于下一状态的分析
估计价值和实际价值的差：直接用估计当前状态的价值与上一步计算的价值做差

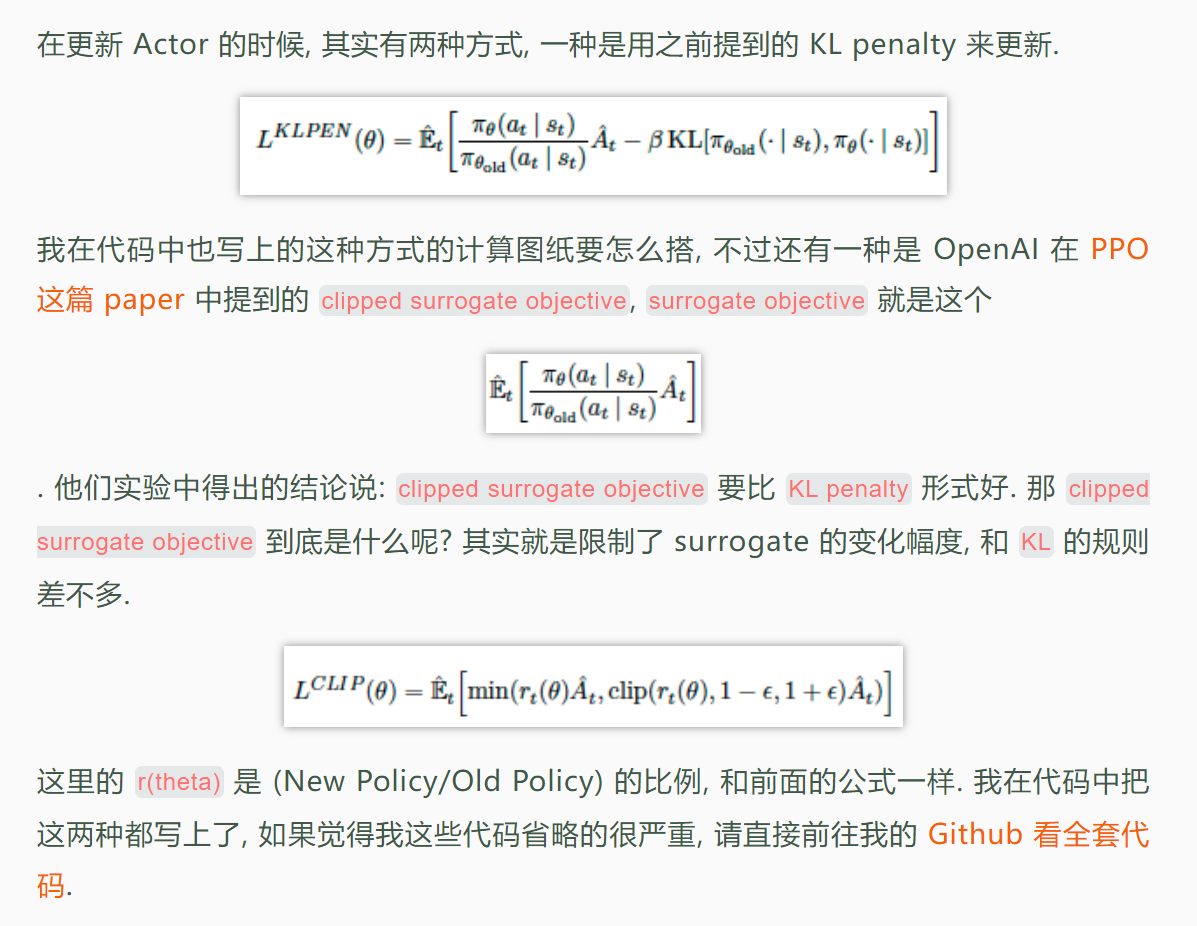

计算actor网络的loss的方法是

(mu, sigma) = self.anet(s[index])
dist = Normal(mu, sigma)
action_log_probs = dist.log_prob(a[index])
ratio = torch.exp(action_log_probs - old_action_log_probs[index])

surr1 = ratio * adv[index]
surr2 = torch.clamp(ratio, 1.0 - self.clip_param,
                    1.0 + self.clip_param) * adv[index]
action_loss = -torch.min(surr1, surr2).mean()

先利用当前的网络采样输出μ和σ，然后计算之前action的log_prob，，然后利用表达式e^(这次网络计算出的log可能性-上次网络计算出的log可能性)，实际上就是这次网络计算出的可能性/上次网络计算出的可能性与上一步算出的估计价值和实际价值的差值修正这个值，主要目的是用合理的方法利用其他时刻动作的输出，增加一个动作的利用效率

然后用一个参数×上面的数值，处理之后得到最终需要反向传播的值（actor）

value_loss = F.smooth_l1_loss(self.cnet(s[index]), target_v[index])
self.optimizer_c.zero_grad()
value_loss.backward()
nn.utils.clip_grad_norm_(self.cnet.parameters(), self.max_grad_norm)
self.optimizer_c.step()

更新Critic的参数操作是将现在的Critic网络对价值的判断与前面算出的目标价值判断进行比较，将二者的差进行反向传播

BatchSampler和SubsetRamdomSampler
SubsetRandomSampler实际上是将数据的顺序打乱做一个全排列
BatchSampler实际上是根据设置的batch_size给数据分成一个个的batch
